Our company has professional and mature production experience of
pine nut processing line.
Pine nut processing procedures:
1, pineal thresher, 2 removal of impurities, 3, according to size
classification, 5, shelling, 6,
shell and kernel separation, 7, drying, 8, peeling, 9, baking (or
other deep processing)
Description of product features and functions:
1. The new structure improved by our company for many times has
good mechanical stability and low noise;
2, the machine structure is compact, easy to assemble and
disassemble, easy maintenance;
Higher shucking rate, less broken grains, higher precision, 98%
cycle shucking rate, 96% integrity rate,the machine will adjust
itself according to the material size, the design
structure, the circulation shelling,automatically screened unhulled
and
hulled ,feeding,shelling again, shell and kernel are separated from
different material discharges.
This machine is suitable for large, medium and small processing
plants.

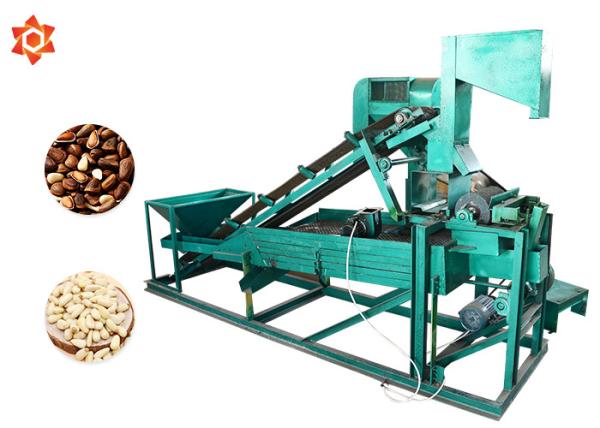

TECHNICAL PARAMETER 40-50kg/h capacity electrical nut sheller pine
nuts shelling machine:
TYPE | CAPACITY | POWER | WEIGHT | SIZE |
TK-SZ | 40-50kg/h | 2.6KW | 460KG | 3200*1000*1900mm |
The pine nut sheller can be used alone or in combination with a
production line.
When using a single machine: first take off the large pine nuts,
then adjust the clearance and then take off the small pine
nuts,cycling(re-shelling of the unshelled),until all sizes of pine
nuts are shelled.
The gap between the rolls should be 1-1.5 mm smaller than the size
of the loose pieces.
For example, the size of pine nut raw material is 15 mm in diameter
of large pine nuts, 12 mm in diameter of medium pine nuts, and 9 mm
in diameter of small pine nuts. It is adjusted according to the raw
material in turn: the first roll release clearance is 14 mm, the
second roll release clearance is 11 mm, the third roll release
clearance is 8 mm, and the third roll release clearance is 8 mm. In
practical application, the clearance should be adjusted according
to the material to achieve the best effect of sheltering and
non-crushing. At the same time, each level of pine nuts for
dehulling, need to replace the corresponding screen.
